| SKU: | NT-12S |
Description
NT12S Technical Documentation:
- Suburban-Dynatrail Furnace Model NT12S Service Manual
- Suburban RV Furnace NT-12S – Service Manual 2
- Suburban Furnace NT-12S – User Information Manual
- Suburban Furnace NT-12S – Installation Manual
- Suburban Master Parts List
- Suburban Dyna-Trail Installation, Operating, and Service Instructions NT-12

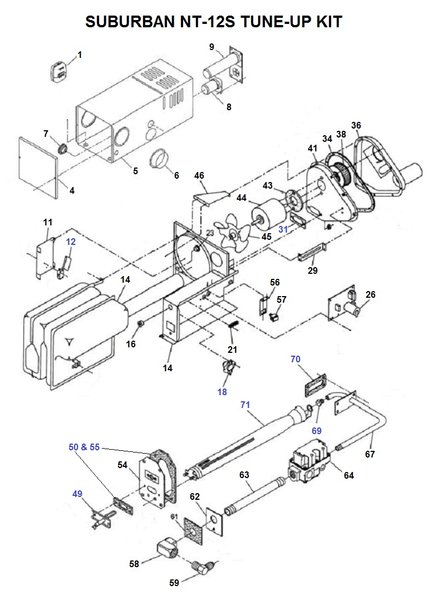

Suburban Furnace Model NT-12S Tune-Up Kit
Tune-Up Kit #1 Contents: (To order just an individual part, click onto the item# / description below)Item# 49 Electrode, Single Sense 231931
Item# 71 Burner Assembly 010978
Item# 69 Orifice 180225
Item# 18 Limit Switch 230621
Item# 12 Sail Switch 233100
Item#’s 50 & 55 Electrode / Burner Door Gasket Kit 071076 Tune-Up Kit #2 Contents: (To order just an individual part, click onto the item# / description below) Item# 49 Electrode, Dual Sense 230956
Item# 71 Burner Assembly 010978
Item# 69 Orifice 180225
Item# 18 Limit Switch 230621
Item# 12 Sail Switch 233100
Item#’s 50 & 55 Electrode / Burner Door Gasket Kit 071076
pdxrvwholesale.com parts links:
SUBURBAN FURNACE NT-12S EXPLODED PARTS VIEW LINKS
- Item# 1 Thermostat, White
- Item# 1 Thermostat, Black
- Item# 6 Combustion Air Housing Gasket 070862
- Item# 8 Sail Switch
- Item# 15 Combustion Air Wheel
- Item# 16 Combustion Air Housing Gasket 070906
- Item# 17 Burner Tunnel Gasket 070859
- Item# 18 Motor Gasket
- Item# 19 Motor, 12VDC
- Item# 20 Room Air Impeller
- Item# 22 Burner Assembly 010886 Obsolete / No Longer Available
- Item# 23 Manifold Gasket
- Item# 26 Orifice 180130 Obsolete / No Longer Available
- Item# 27 Burner Tunnel Gasket 070848
- Item# 31 Module Board Insulator
- Item# 32 Module Board
- Item# 38 On/Off Switch
- Item# 41 Gas Valve
- Item# 46 Electrode Gasket
- Item# 47 Electrode (above serial # 042111218)
- Item# 51 Burner Door Access Gasket 031172
- *Not Shown* Ignition Lead 231783
- Item# 55 Limit Switch
